DIY Plant Stand



Learn how to build a DIY tiered metal plant stand using aluminum brazing with a blow torch with detailed tutorial, video and plans. It makes a great display for all your plants!

Directions

STEP 1: CUT THE ALUMINUM TUBES

  • Start by cutting the aluminum tubes per the plans.

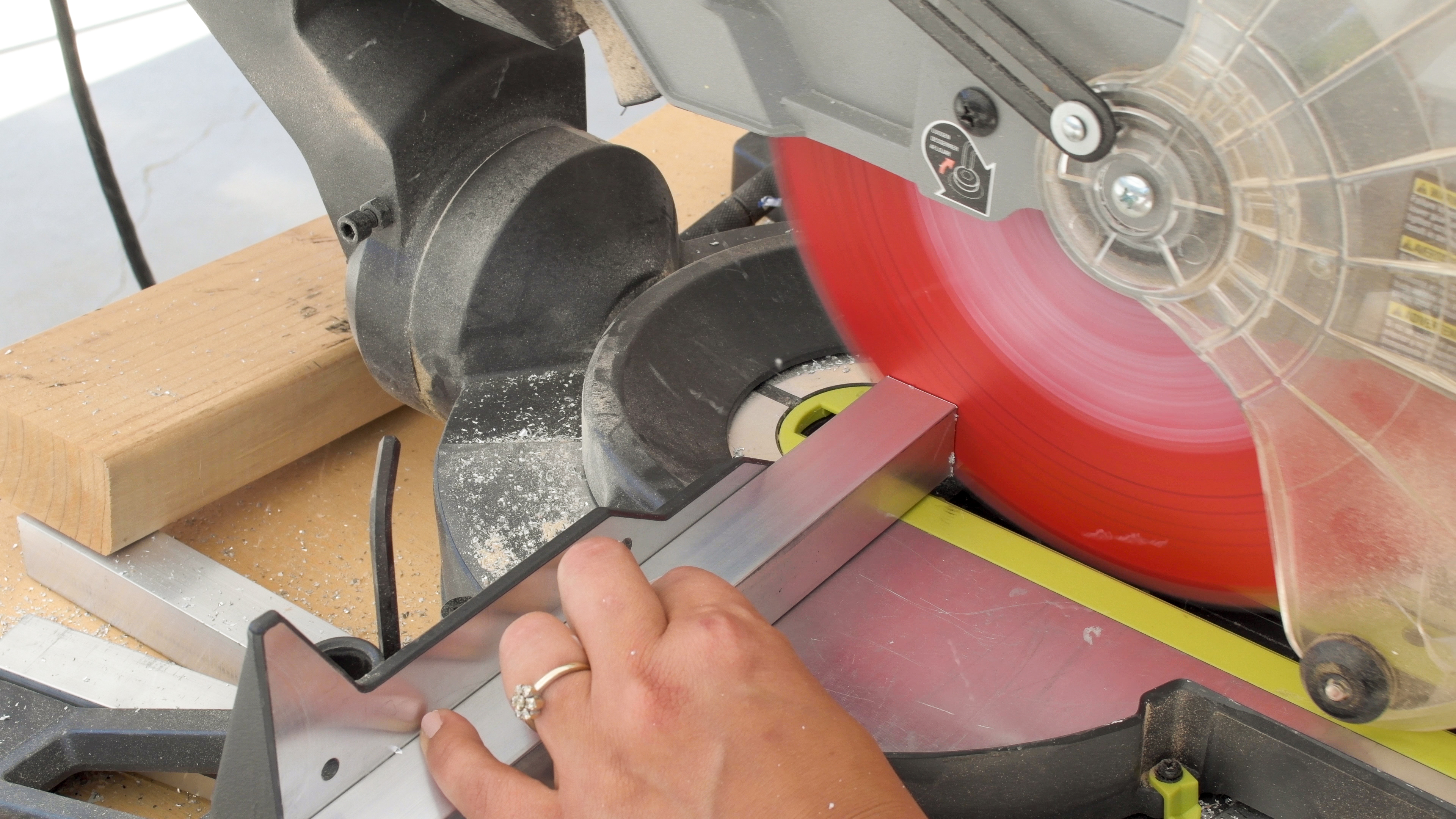

Cutting aluminum

Aluminum is a relatively soft metal that can be cut using most woodworking saws and blades. The trick is to go slow so there is no build up of heat. If you are making many cuts like for this project, take breaks between every few cuts to allow the blade to cool down.

STEP 2: CLEAN AND PREPARE TUBES

  • Clean all the tubes with acetone to remove all the gunk and residues.

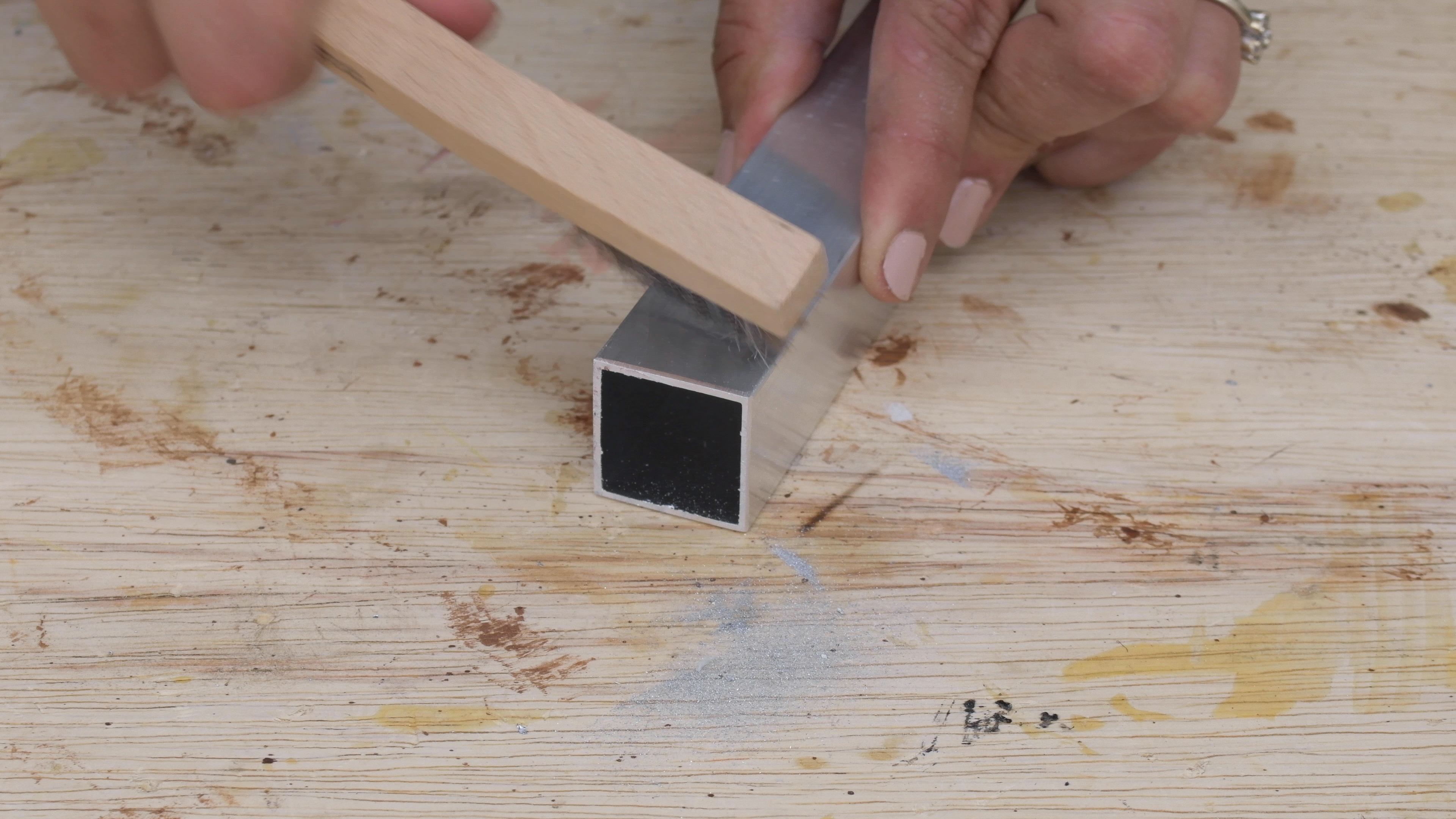

  • Using a metal file, slightly bevel the edge on all sides of the tubes that will be brazed. This creates a channel for the filler metal to travel into and fill the joint.
  • Use a wire brush to clean the edge - this is akin to sanding and helps remove any oxidation.

Cleaning with wire brush

Cleaning and preparing the tubes are extremely important steps to get the best and strongest joint.

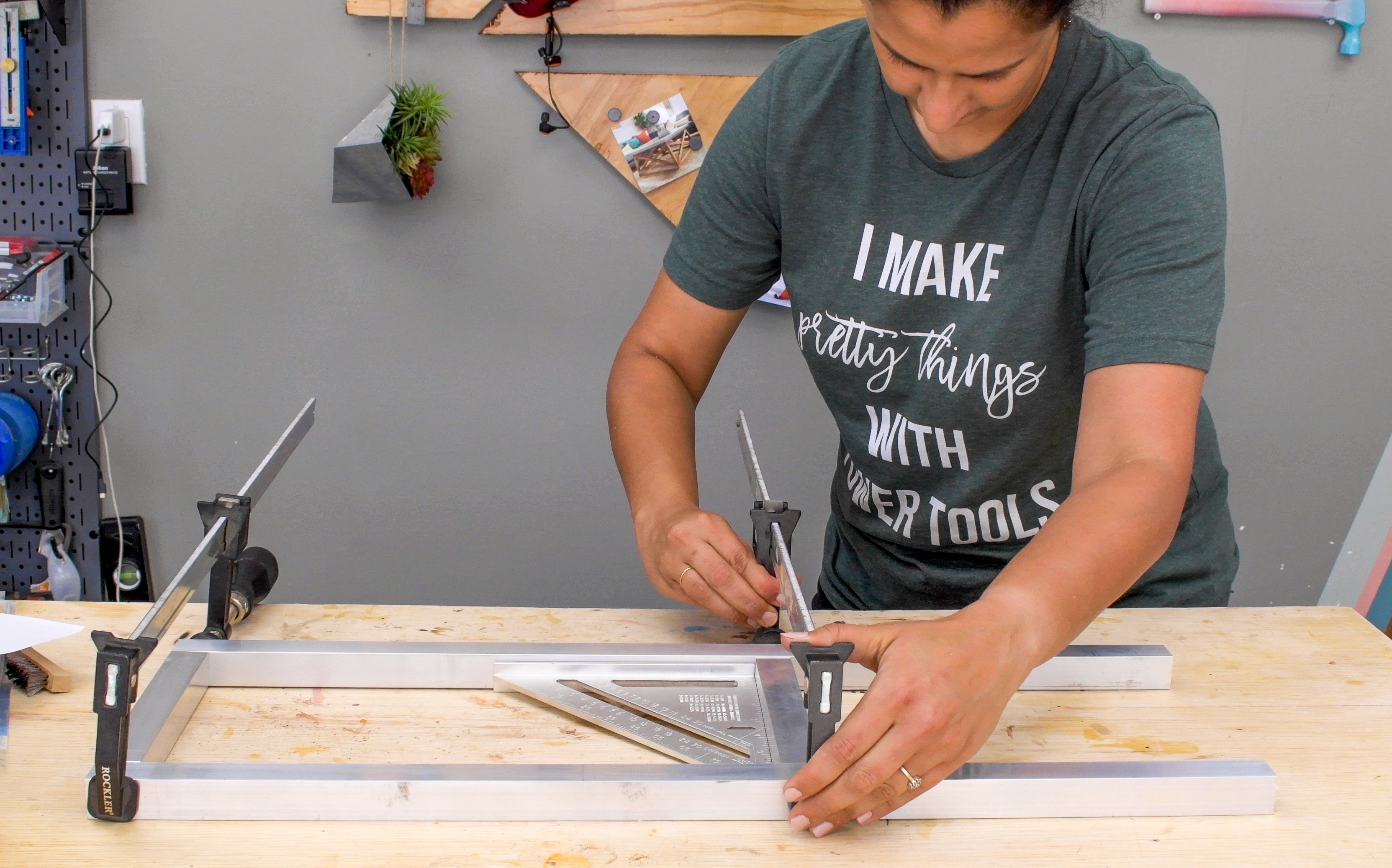

STEP 3: SET UP THE JOINT

  • Set up the metal pieces you want to join and hold them together using a metal clamp. Be sure to use a speed square to keep everything square.

Clamping metal

It is important to use a metal clamp for this project as the aluminum tubes get really hot, and the clamp comes in contact with the flame. Plastic will not survive.

STEP 4: BRAZE

  • Use the Bernzomatic BZ8250 Hose Torch with the Bernzomatic MAP-PRO gas fuel cylinder.
    • Apply the flame to the joint. The edge of the blue flame is the hottest point.
    • When you expect that the joint is hot enough, move the flame away but still keep very close to the joint. Quickly touch the brazing rod to see if it melts on contact with the joint.
      • If it melts, move it across the joint to fill it with the brazing material.
      • If it doesn't melt, go back to applying heat and repeat above.

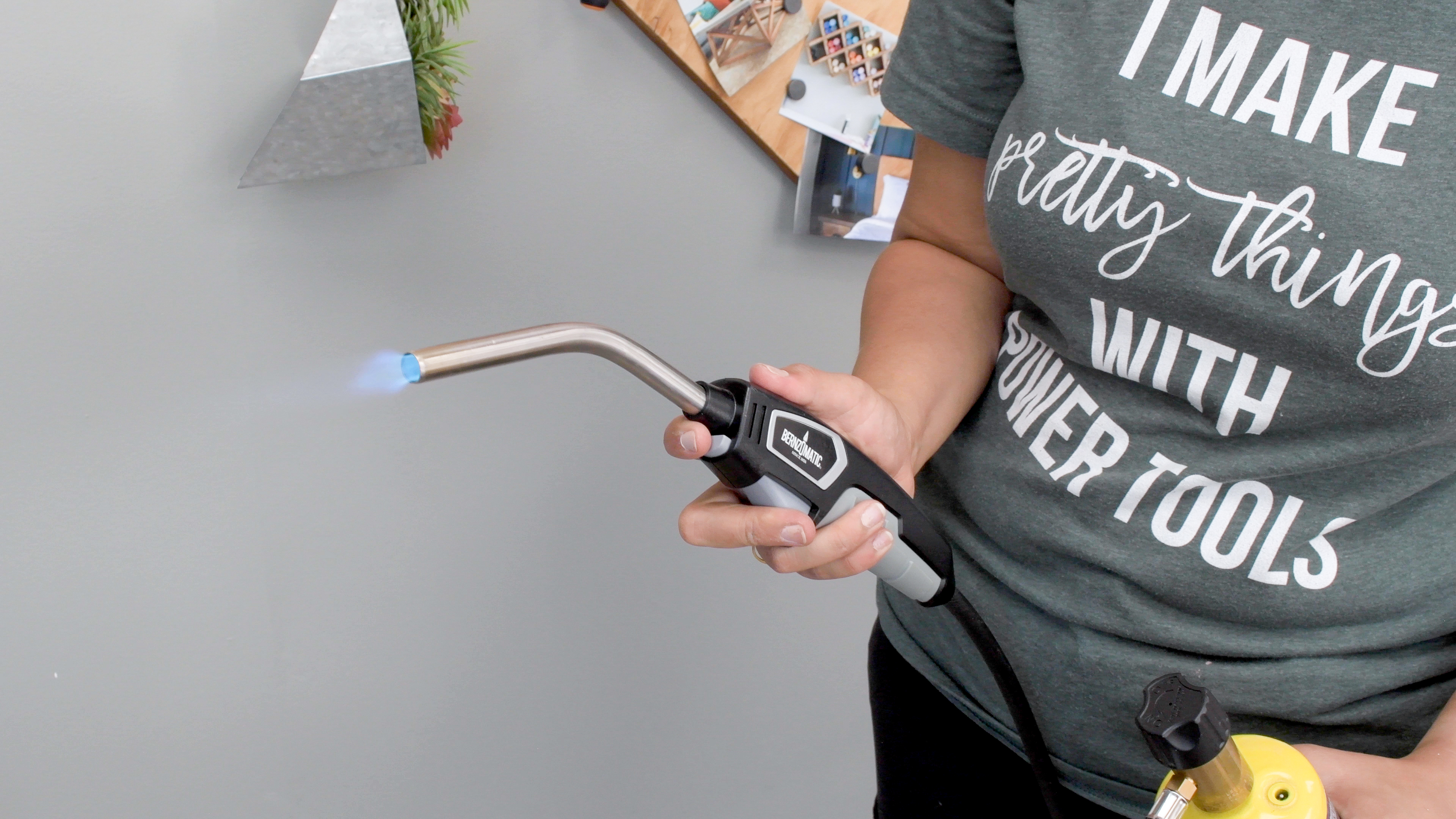

Bernzomatic hose torch

Once one side of the joint is brazed, quickly go to each consecutive side in sequence and repeat the above. The heat from the previous side makes the process faster.

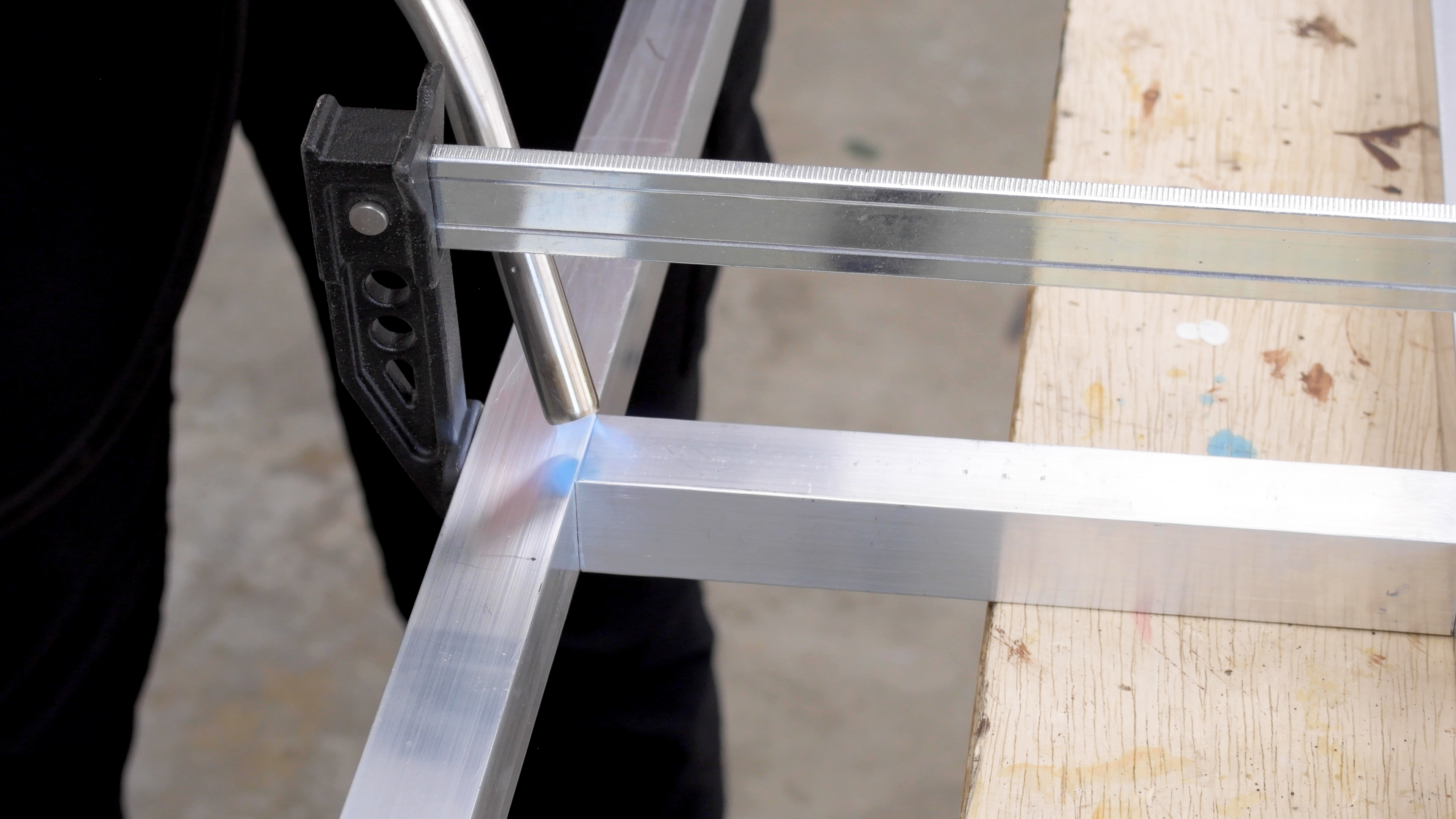

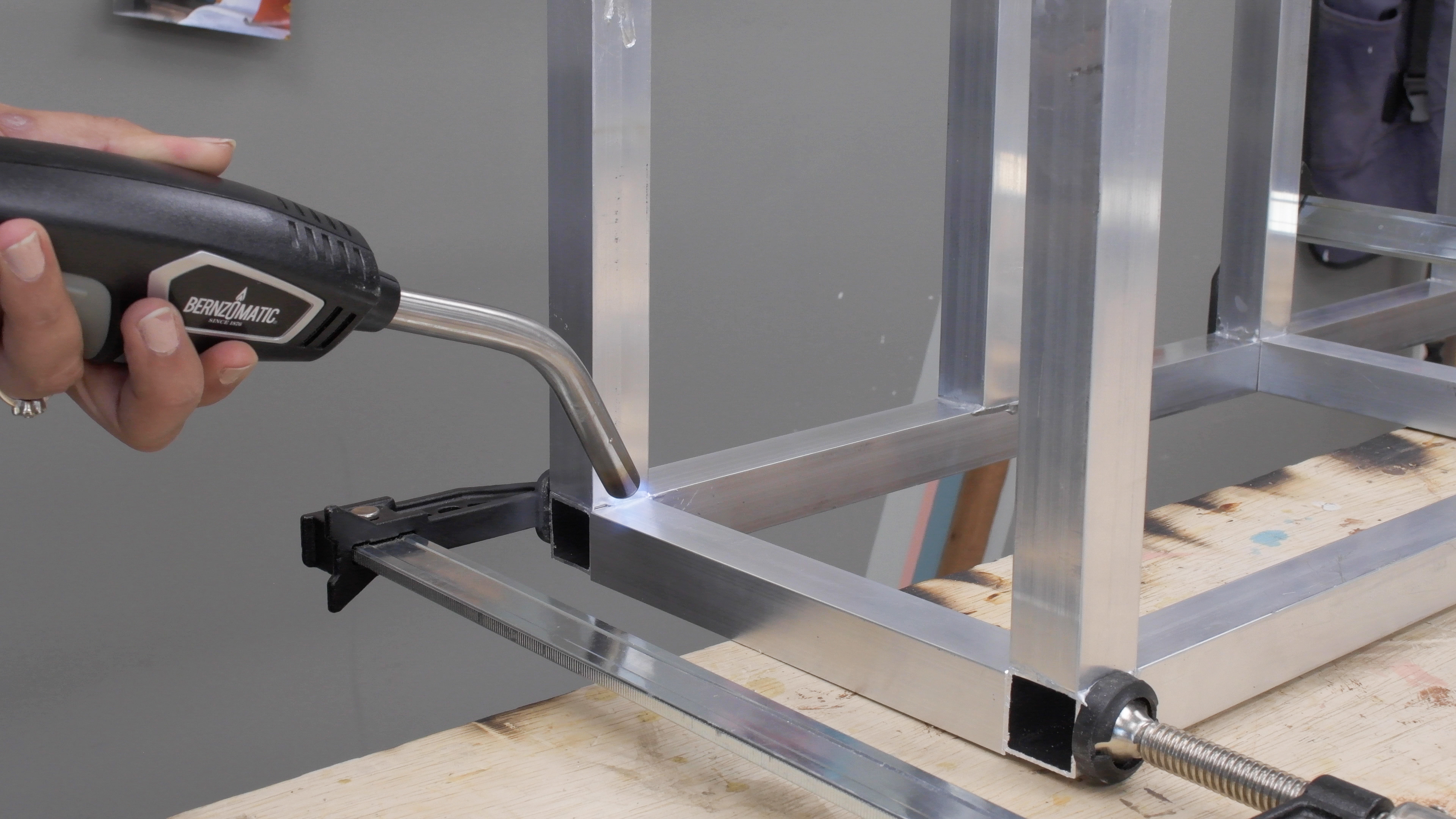

Brazing

Once you braze a couple of joints, you should get an idea of how long it takes to get the joint hot enough. Build the vertical frames first.

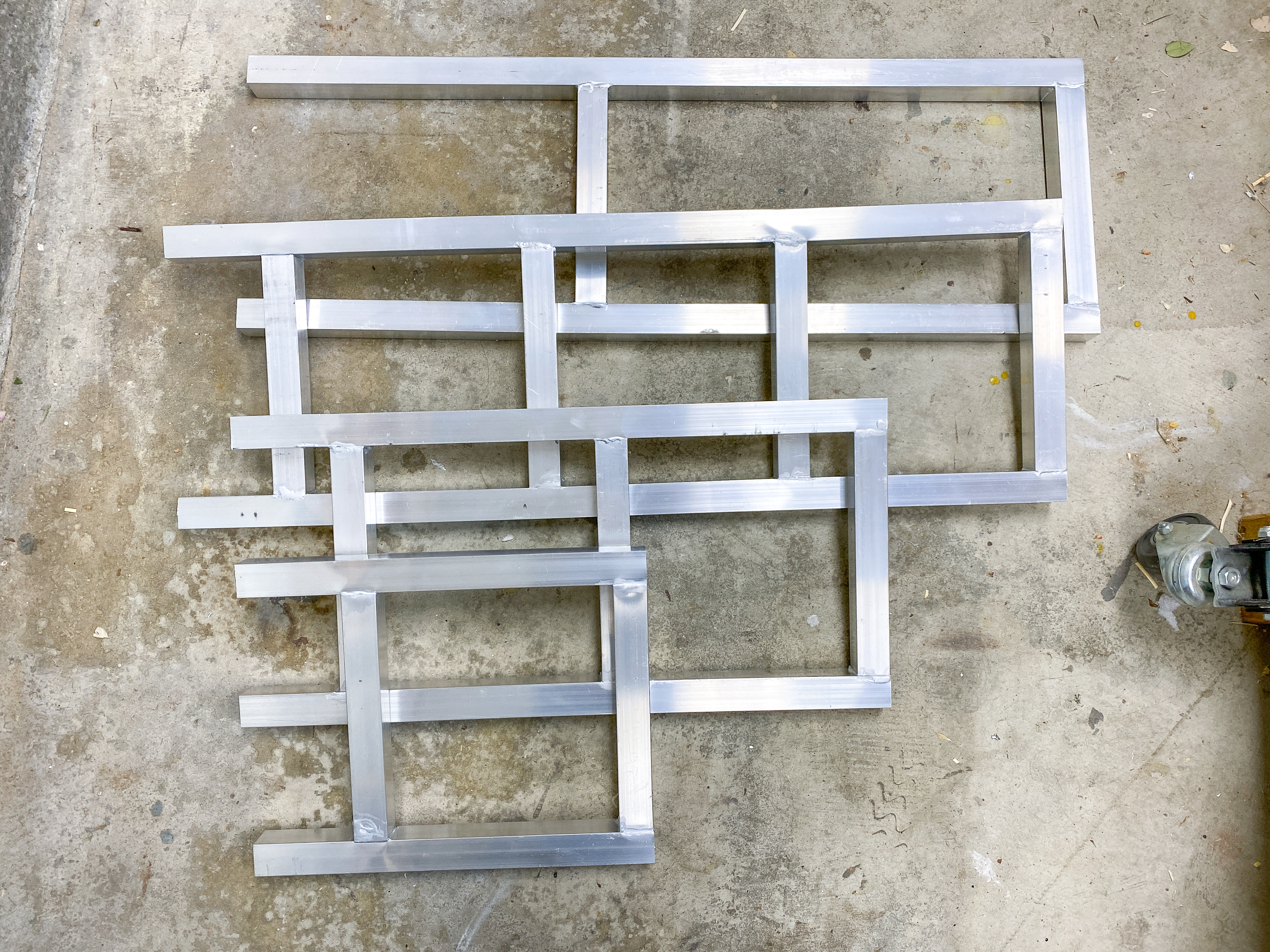

Vertical frames

Then attach the middle pieces to build the frame.

Attaching frame pieces

STEP 5 : CLEAN AND PAINT

  • You may have drips of the brazing material, which can be very sharp. These can be filed down with the metal file.
  • Clean the frame again with acetone to remove any dirt or oils from touching it.
  • Prime and paint with the spray paint of your choice. A glossy black finish was used for this project.

And that's the plant stand designed to fit 8-inch terracotta pots!

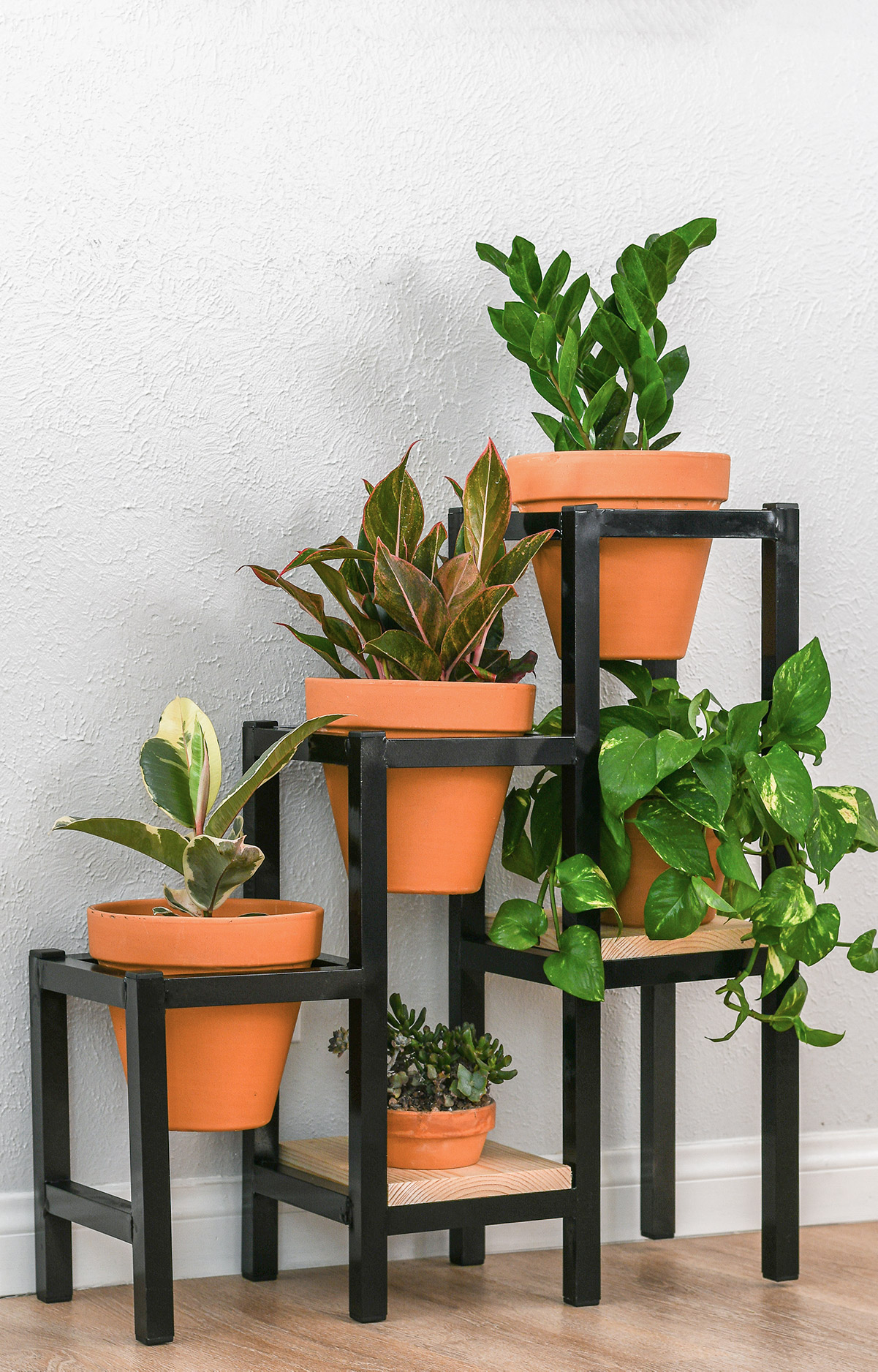

Completed plant stand

What You'll Need


BZ8250HT

Reach Torch

BZ8250HT
Product Info

MG9

14.1 oz. MAP-Pro® Hand Torch Cylinder

MG9
Product Info

AL3

Aluminum Brazing and Welding Rods

AL3
Product Info

Materials

  • 1" square aluminum tubes
  • 1x8 boards
  • Flat metal file
  • Wire brush
  • Acetone
  • Spray paint in the color of your choice
  • Heat resistant gloves

Tools

  • Miter saw
  • Speed Square
  • Metal F-clamps
